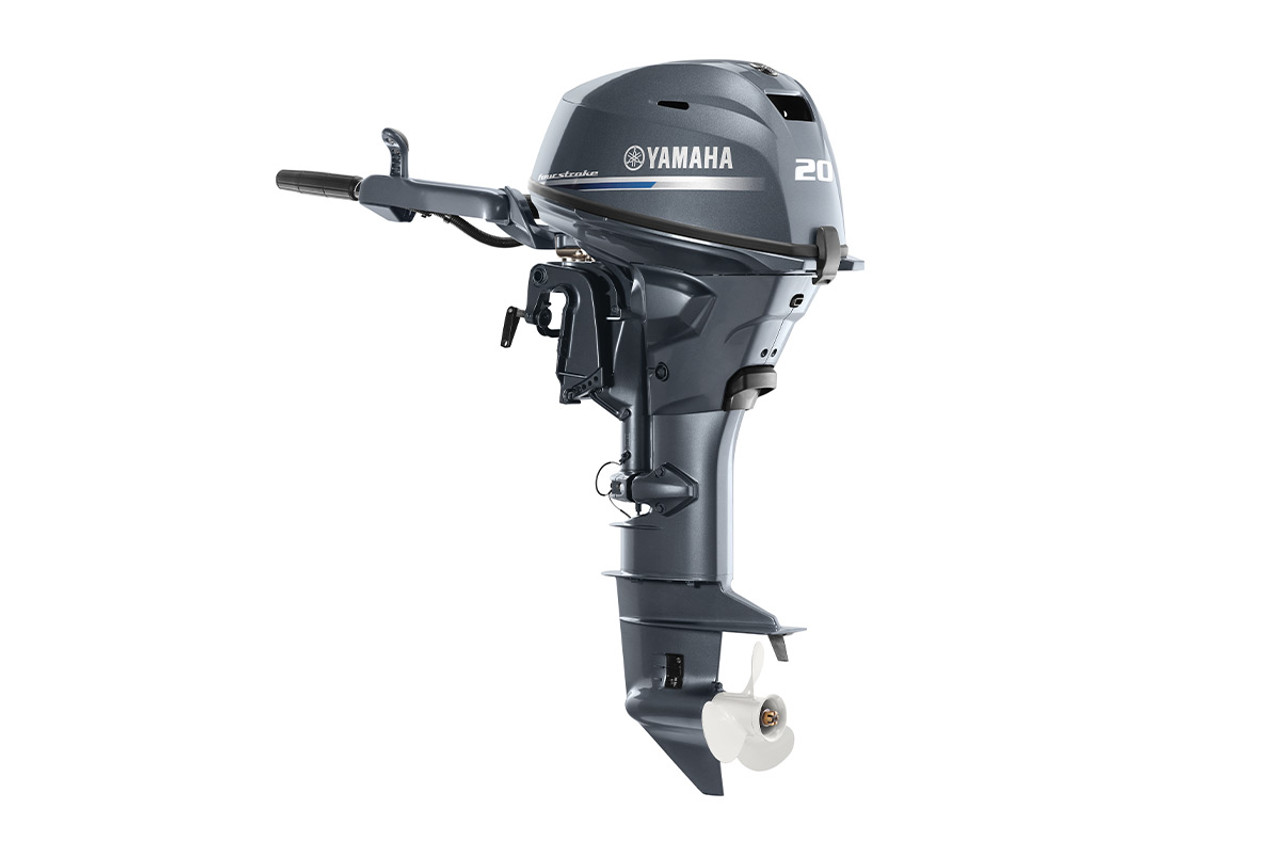

Yamaha 20hp Outboard | F20LWHB

Yamaha’s 432cc all-new 20hp portable outboard—built on the same award-winning platform as the F25 and sharing its SOHC in-line design and streamlined intake manifold—delivers solid power. Not only that, but it’s one of the most fuel-efficient in its class. At just 126 pounds, it’s suitable for lightweight craft such as aluminum fishing boats, tenders, and inflatables.

Key Features

• Max Maneuverability: A 45-degree steering angle in each direction means great maneuvering potential.
• Easy Engine Flushing: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.
• Portability and Storage: Incredible light weight, built-in resting pads and carry handles, an easy oil retention system, and an optional folding tiller handle allow for easy carrying and on-side storage without oil leakage or cowling scuffs.

Motor Specifications

• Engine Type: Yamaha F20LWHB Four Stroke
• Horsepower: 20hp
• Cylinders: 2 cyl
• Shaft Length: 20″ Long
• Steering: Tiller
• Starter: Electric + Manual
• Weight: 137 lbs
• Alternator Output: 16 amp
• Degree of Tilt: 62°- 63°
• Degree of Trim: -3° through +16°
• Full Throttle Range: 5000 – 6000 rpm
• Displacement: 432cc
• Fuel Induction System: Electronic Fuel Injection (EFI)
• Warranty: Yamaha 3-Year Warranty

Standard Features

• Aluminum Propeller
• Fuel Line
• Safety Lanyard
• Owner’s Manual
