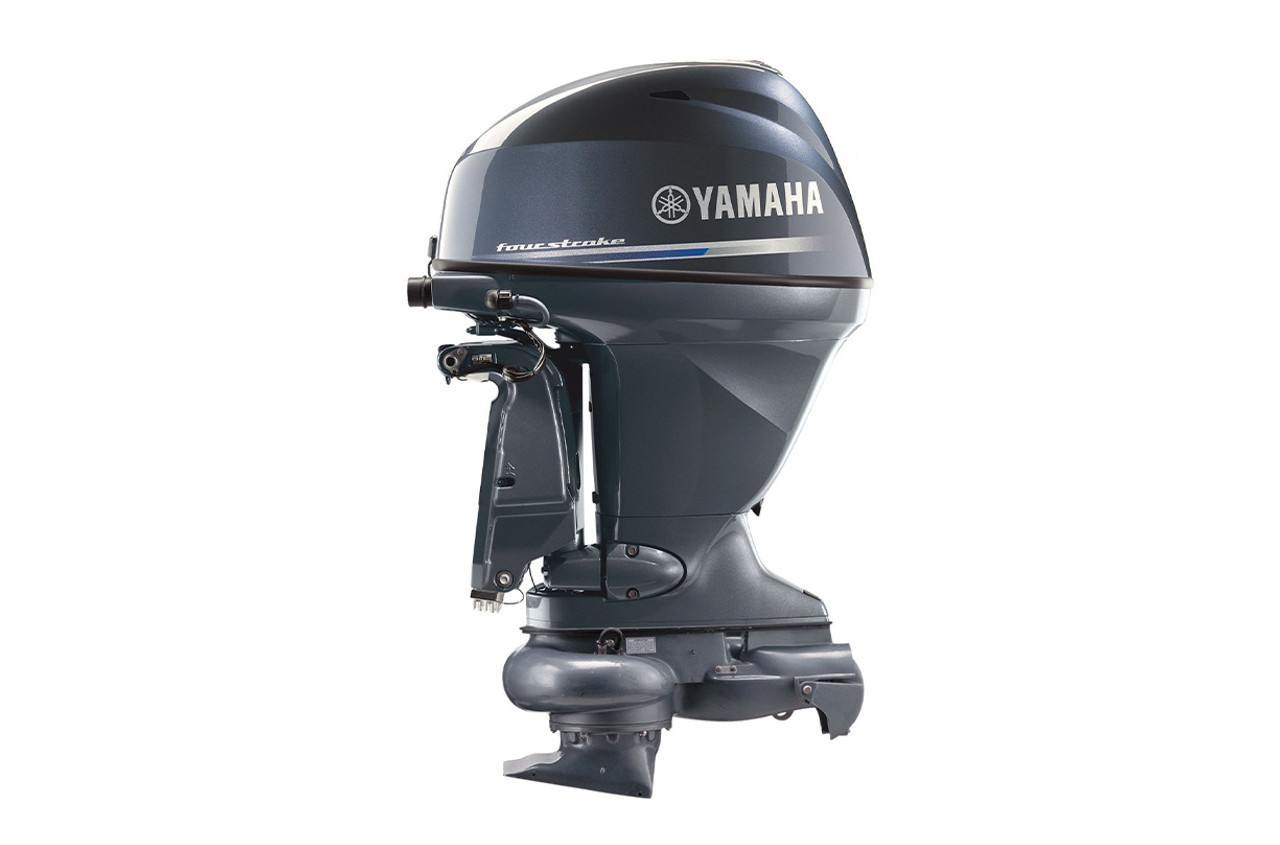

Yamaha 40hp Jet Outboard | F40JEA

Yamaha’s Jet Drive four strokes can boldly go where no propped outboard would dare. Shallows. Rocky-bottom rivers. Shoals. White-water rapids. They’d all prove treacherous for a propeller-driven outboard, but a jet drive is all over it. Prop-free, you can “off-road” without worrying about breaking a prop on rocks and other underwater obstructions. So, while you may be giving up the prop, you’re gaining a whole lot of freedom, with powerful, fuel efficient Yamaha Jet Drives available in 150, 115, 90, 60, and 40 horsepower.

Yamaha’s 747cc F40 Jet Drive four stroke produces 30hp at the pump. Its compact, light-weight SOHC three-cylinder, in-line design features a long-track induction system and a single throttle valve. This creates compact, light-weight power and improves throttle response.

Key Features
Incredible Maneuverability: With no gearcase or propeller extending below the hull, a jet drive allows you to maneuver around or pass over obstructions that would limit the travel of a conventional, propped outboard.
Easy Engine Flushing: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.
Reliability and Durability: Combined with our proprietary alloy (YDC-30), Yamaha’s exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha Jet Drive four stroke outboards.

REQUIRED FEE
$275 Dealer Engine Prep – Our factory qualified technicians perform a full test run of your new outboard by unpackaging it and connecting it to rigging, fuel, battery, and diagnostic computer. We run the motor up to operating temperature and test every operation of the motor to ensure your new motor is working just as it should be. The manufacturer’s required inspection checklist is completed and submitted to the manufacturer to validate the warranty.

Motor Specifications
Engine Type: Yamaha F40JEA Jet Four Stroke
Horsepower: 30hp Jet Drive
Cylinders: 3 cyl
Shaft Length: 20″ Long
Steering: Remote Mechanical
Starter: Electric
Weight: 219 lbs
Alternator Output: 16 amp
Degree of Tilt: 65°
Degree of Trim: -4° through +16°
Full Throttle Range: 5000 – 6000 rpm
Displacement: 747cc
Fuel Induction System: Electronic Fuel Injection (EFI)
Warranty: Yamaha 2-Year Warranty

Standard Features
Nitro-Assist Tilt
Jet Lower Unit
Steering Link Arm
Fuel Line
Owner’s Manual
