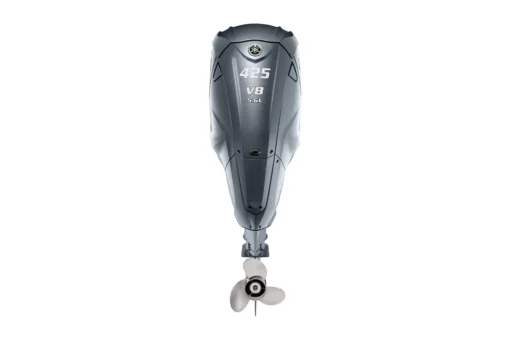

Yamaha 425hp XTO Offshore Outboard | LXF425USB

KEY FEATURES

Thrust-Enhancing Reverse Exhaust: For more control at lower speeds and increased precision of our Helm Master^® EX boat control system, exhaust is diverted away from the propeller at RPMs below 2,500.

Pump Stop Power Tilt Limit: The tilt pump shuts off when it reaches maximum tilt setting, rather than continuing to run, saving power and reducing noise at full trim in/out.

Wide-Span Mounting System: For minimized vibration and a more compact design, incredibly strong upper motor mounts placed wide on the exterior of the upper mid-section work in conjunction with our Long Span Mounting System.

Phase Angle Control Charging: The XTO’s NEW Phase Angle Control Charging System meets the extreme electrical needs of today’s larger boats. This Innovation Award-winning new system produces up to 96 amps of net charging power at idle—from a single outboard—and up to 480 net amps in a quint configuration. This is up to 65 percent more maximum net charge at idle than the previous XTO model.

MOTOR SPECIFICATIONS

• • Engine Type: Yamaha LXF425USB XTO Offshore Counter Rotation Four Stroke
  • Horsepower: 425hp
  • Cylinders: 8 cyl
  • Shaft Length: 30″ XX-Long
  • Throttle/Shift: Digital Electronic Controls
  • Steering: Integrated Electric Power Steering
  • Starter: Electric
  • Weight: 977 lbs
  • Alternator Output: 100 amp
  • Degree of Tilt: -4° through +73°
  • Degree of Trim: -4° through +16°
  • Full Throttle Range: 5000 – 6000 rpm
  • Displacement: 5.6L
  • Fuel Induction System: Direct Injection / Up to 2900 PSI
  • Warranty: Yamaha 3-Year Warranty

STANDARD FEATURES

• • Counter Rotation
  • Power Trim & Tilt
  • Dual Flush System
  • Owner’s Manual

*Prop included.
