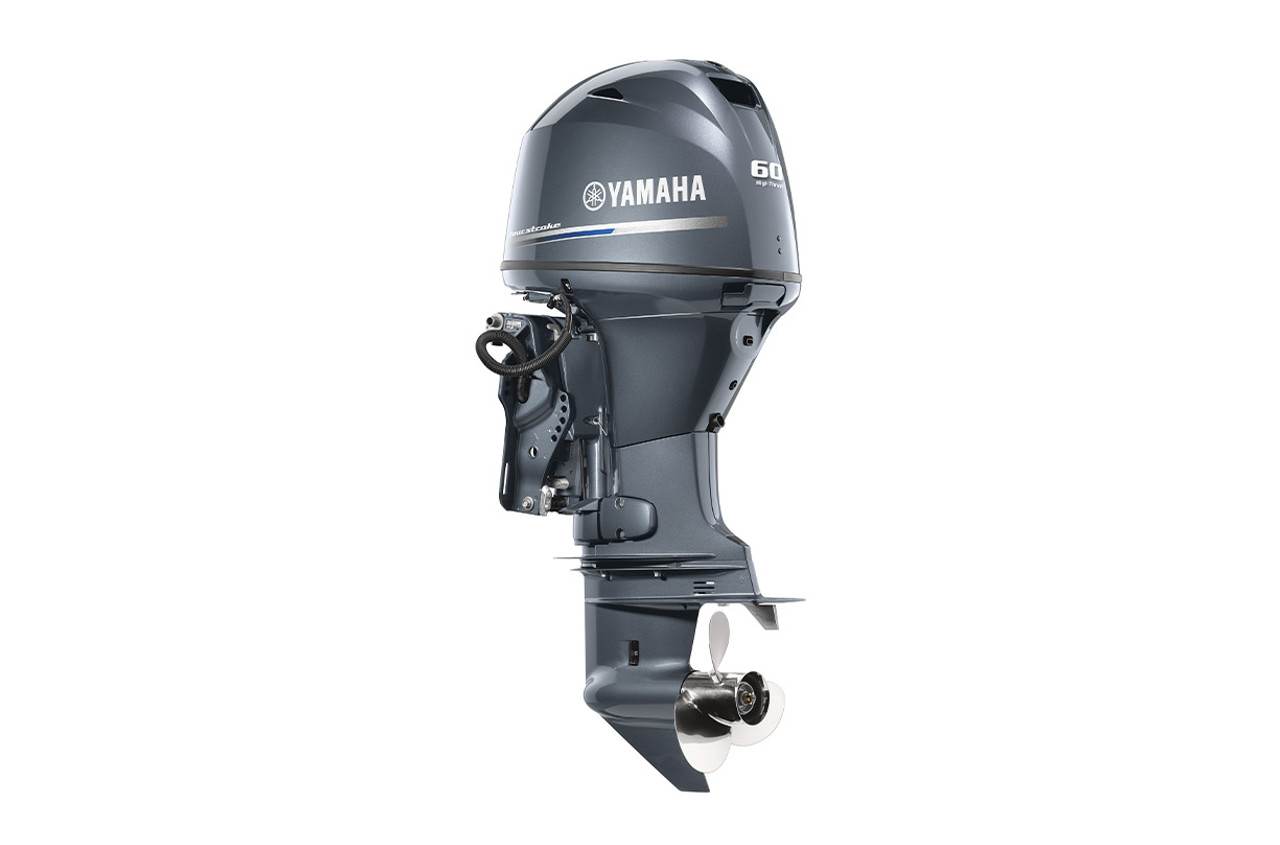

Yamaha 60hp High Thrust Outboard | T60LB

Yamaha’s High Thrust four strokes are built for jobs that call for more muscle—like pushing a heavy pontoon, adding extra kick to a multi-species boat, or maneuvering a sailboat through a crowded marina. Available in 60, 50, an all-new 25, and a 9.9 horsepower, their larger lower units and higher gear ratios produce substantially more thrust than conventional outboards of the same horsepower using standard propellers. In fact, when paired with our Dual Thrust™ propellers (optional on T60/T50 and standard on our T25 and T9.9), Yamaha High Thrusts produce up to 60 percent more forward thrust and up to 70 percent more thrust in reverse.

Yamaha’s 996cc 60hp High Thrust four stroke is a powerful addition to a day spent pontooning. Its SOHC four-cylinder design, composite long-track intake system, and proprietary YDC-30 aluminum alloy result in a 60-horsepower four stroke that’s light, compact, and generates tremendous thrust.

Key Features:

• Gauge Compatibility: Optional Command Link® gauges provide real-time outboard performance, boat systems, and environmental data at your fingertips. Streamlined displays available in square or round style for single- or multi-engine applications.
• Easy Engine Flushing: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.
• Reliability & Durability: Incoming air is routed through an Air Intake Labyrinth System that traps and drains water before it enters the engine’s intake for maximum reliability.

Required Fees $275 Dealer Engine Prep – Our factory qualified technicians perform a full test run of your new outboard by unpackaging it and connecting it to rigging, fuel, battery, and diagnostic computer. We run the motor up to operating temperature and test every operation of the motor to ensure your new motor is working just as it should be. The manufacturer’s required inspection checklist is completed and submitted to the manufacturer to validate the warranty.

Motor Specifications:

• Engine Type: Yamaha T60LB High Thrust Four Stroke
• Horsepower: 60hp
• Cylinders: 4 cyl
• Shaft Length: 20″ Long
• Steering: Remote Mechanical
• Starter: Electric + Manual
• Weight: 262 lbs
• Alternator Output: 16 amp
• Degree of Tilt: 69°
• Degree of Trim: -4° through +16°
• Full Throttle Range: 5000 – 6000 rpm
• Displacement: 996cc
• Fuel Induction System: Electronic Fuel Injection (EFI)
• Warranty: Yamaha 3-Year Warranty

Standard Features:

• Power Trim & Tilt
• High Thrust Lower Unit
• Steering Link Arm
• Owner’s Manual
